Display Interface Bridge Device

ArcticLink® III BX family of devices

The ultra-low power ArcticLink® III BX family of devices bridge between MIPI DSI, LVDS and RGB interfaces used by processors and displays for a wide range of mobile consumer, industrial and medical devices. ArcticLink III BX bridges mismatched interface standards between the display and processor, enabling single-chip bridging solutions at lower cost and low power.

Features

MIPI DSI or RGB inputs; MIPI-DSI, LVDS, and/or RGB outputs


Single bridge or dual output options


Supports up to 1920x1200 Resolution

Benefits

Enables use of lower cost or highly custom displays with state-of-the-art processors by bridging mismatched display interfaces


Low Power display bridge


Small device form factor, reducing PCB space requirements.

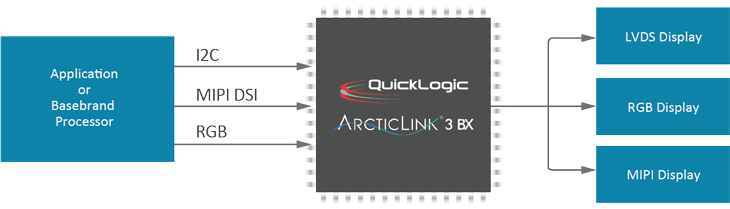

Block Diagram
