Australis eFPGA Hard IP Generator
Australis is QuickLogic’s internal eFPGA IP generation tool, built on over 30 years of programmable logic expertise and proven ASIC design methodologies. It automates the creation of domain-specific eFPGA IP, enabling delivery in as little as four weeks. Australis 2.0 builds on this foundation with
- Improved eFPGA IP routing delays for maximum performance
- Improved CLB packing and more efficient resource utilization
- A more intelligent routing engine to meet timing constraints
- Support for different memory options, including Scan, Shadow Latch, configuration health monitoring, and repairu2014plus fast FPGA configuration switching
Features
Bespoke
Highly customizable, from the right amount of LUT6s, BRAMs and DSP blocks, routing channels to different transistor options
Proven
eFPGA IP is generated with proven standard cell ASIC libraries for the chosen process node / foundry combination
Specialized
Can be implemented utilizing specialized cell libraries, such as RHBD or automotive qualified libraries
Secure
With different options to secure the eFPGA bitstream, we have a security option that keeps your device secure
Reconfigurable
Adapt to evolving market needs and extend the longevity and usefulness of your SoC
Optimized
To meet your specific performance, power consumption and area requirements
Benefits
Customization
eFPGA IP can be generated and customized to any foundry/process technology within days for supported processes and within a quarter for new technologies.
Fast Time-to-Market
No fixed arrays, providing complete freedom to design your core exactly as needed for rapid deployment.
Versatility
Specify the number of DSP, LUT, and BRAM columns, define X/Y array size, and customize column placement to meet your specific design requirements.
Cost-Effective
Automated core customization reduces both costs and time, enabling more efficient project delivery.
Radiation-Hardened Options
Generate eFPGA IP using Radiation-Hardened By Design (RHBD) standard cell libraries to meet stringent radiation effect requirements.
Reliable Performance
Enjoy peace of mind with low risk eFPGA solutions designed to work seamlessly in your applications.

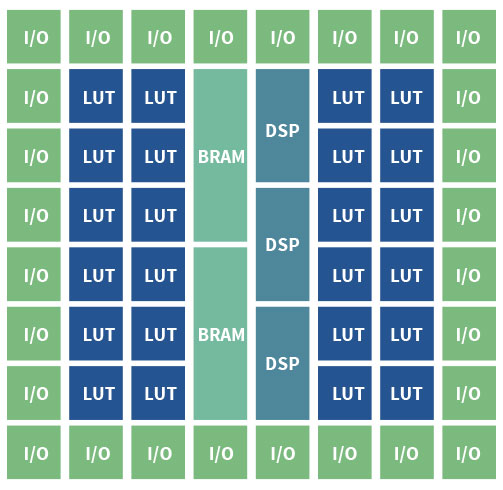

eFPGA Architecture
Foundries
Process Nodes
While these are the foundries and nodes we have extensive experience with, QuickLogic can support any foundry or process node to meet your specific requirements.
18A
6/7nm
12nm
16nm
22nm
28nm
40nm
65nm
90nm
130nm
180nm
0.25μm/ 0.35μm
